MakeMyTrip Internal Tooling
Built a Figma plugin and AI-assisted workflow to audit, explain, and repair text-color token drift across large MakeMyTrip design files.
7,883
Total issues surfaced on one legacy Tours & Attractions page
4,442
Visible issues requiring review or repair
6
Workflow steps Scan → Understand → Review → Fix → Rescan → Trust
My Role
Lead Designer and individual contributor across problem definition, rule logic, AI-assisted prototyping, and plugin workflow shaping.
Scope
Documentation-first system modeling, internal audit tooling, token cleanup workflow, CSV review output, and AI-agent-ready handoff.
Tools
Figma, Figma Plugin API, Cursor, Claude Code, Codex, Antigravity, Markdown design-system docs, and MakeMyTrip design files.
Status
Self-initiated working prototype, presented to design and PM leadership, adopted by the team, and scoped for further development.
Challenge
A text-color cleanup request in MakeMyTrip Holidays and Tours & Attractions — escalated from the CPO through an Associate Director of PM — exposed the real issue: many layers looked fine visually while staying structurally disconnected from the foundation system.

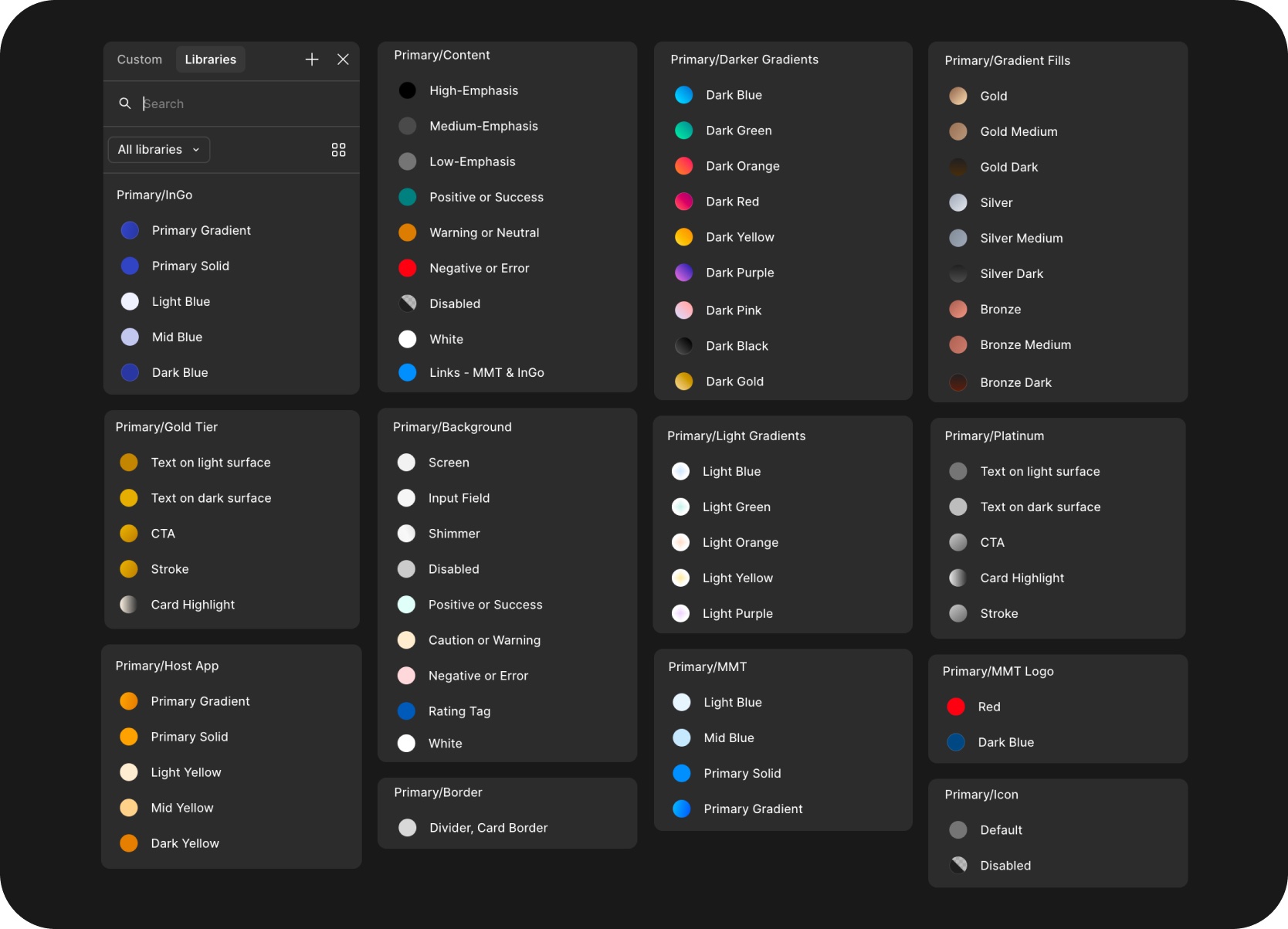

The MakeMyTrip design token library — every color in the system carries a named role. A component using raw hex values instead of these tokens has drifted from the foundation, even if it looks correct on screen.
On the left, '4 hours' uses a raw grey hex that looks acceptable on screen but sits outside the token system and may fail WCAG contrast. Fixing it is not a simple swap — the correct token depends on the surface it sits on. Multiply that judgment across thousands of layers, and the scale of the problem becomes clear.
A layer can look correct on the canvas and still be wrong if it is not linked to the right token, style, or surface rule.
Layers looked correct on canvas while bound to raw hex values instead of foundation tokens.
The same color value could be correct in one place and wrong in another — surface determined the fix.
Thousands of text layers and hidden rows per file — manual review was too slow and inconsistent to be reliable.
AI-recreated designs could pass visual review while using the wrong bindings — close enough to look right, wrong enough to matter.
The Short Version
The MakeMyTrip Text Color Auditor reads the surface behind each text layer, classifies the token-binding problem, and suggests or applies the safest valid repair.
The correct fix depends on the surface behind the text. The plugin distinguishes whether text sits on a:
Each surface changes the right answer, which is what turns invisible token drift into a visible, reviewable table.
On one legacy Tours & Attractions page, the audit surfaced thousands of text-token issues — most requiring active review, the rest hidden but still contributing to long-term file debt.

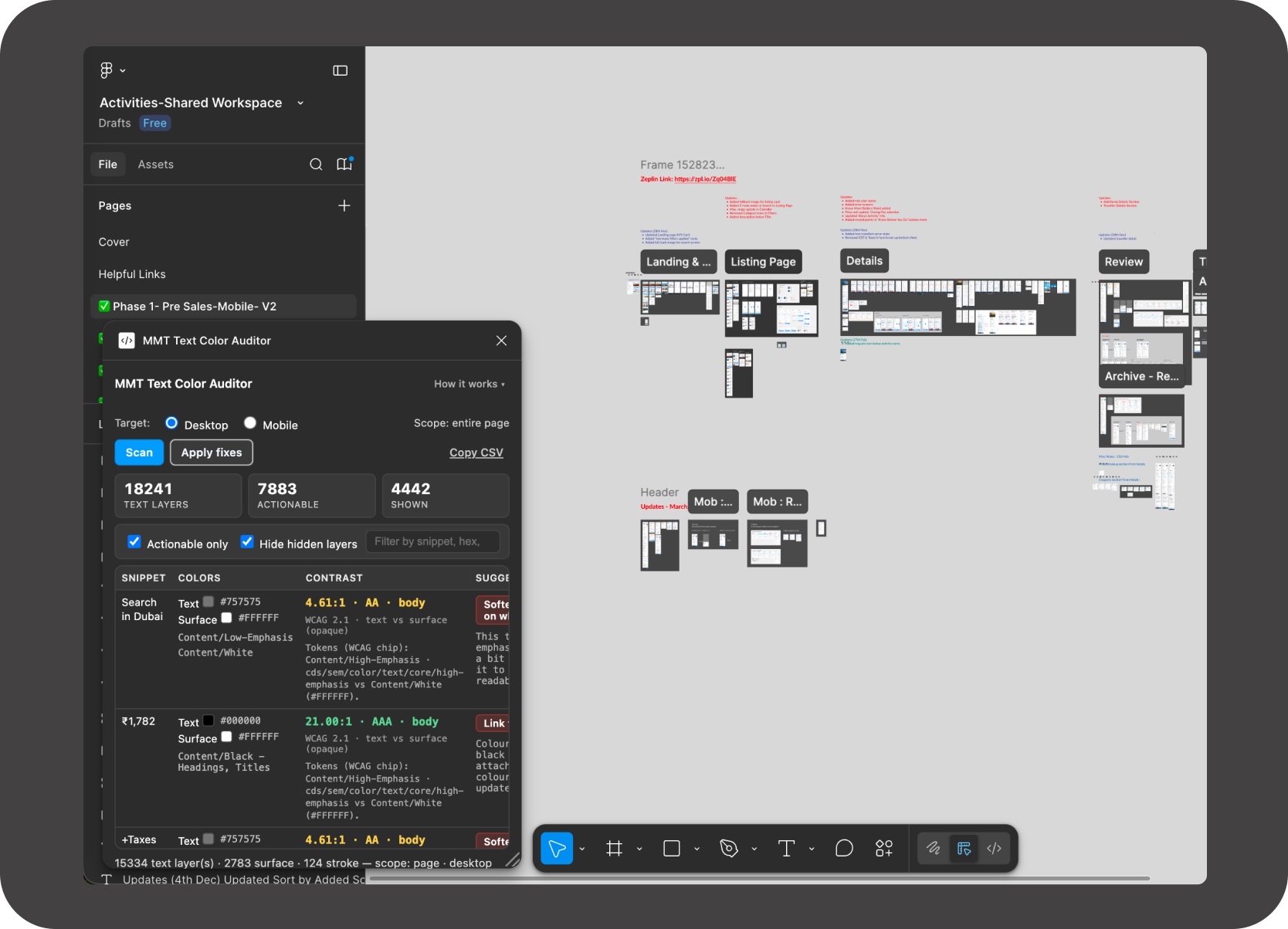

Plugin table screenshot showing issue counts, row notes, and reviewable output.
Before
After
Designers manually inspected text layers.
A scan turns drift into a review table with counts, row notes, and surface context.
Cleanup quality varied by file, reviewer, and available time.
The same rules and categories are applied every time.
The issue looked like scattered styling mistakes.
The issue becomes measurable design-operations debt.
Problem Framing
The right fix depended on where the text appeared, what job the color was doing, how it was currently bound, and whether the case was safe enough to automate.
The MMT design foundation mixed real variables with older styles that only looked like variables. Tokens had been renamed without clear documentation, and newer Figma workflows introduced fresh token and typography mismatches instead of cleaning them up. Looking up a color token was not enough. The tool had to understand the surface behind the text before it could recommend a safe fix.
UI situation
What the tool needed
Grey text on white or light neutral
Usually needs medium-emphasis treatment
High-emphasis text on neutral
Should stay high-emphasis or be correctly bound
White text on brand chip or dark surface
Should preserve white or inverse token
Blue link text
Should map to a brand or semantic token
Gradient CTA or tinted chip
Needs separate surface-aware treatment
Unknown chromatic text
Needs manual review, not unsafe auto-fix
Low or unknown grey on a light neutral surface should usually move to medium emphasis.
Inverse text should be preserved instead of normalized into a neutral token family.
Semantic or brand blue should bind to the right brand token, not be treated as generic text.
Ambiguous semantics are routed to manual review instead of unsafe auto-fix behavior.

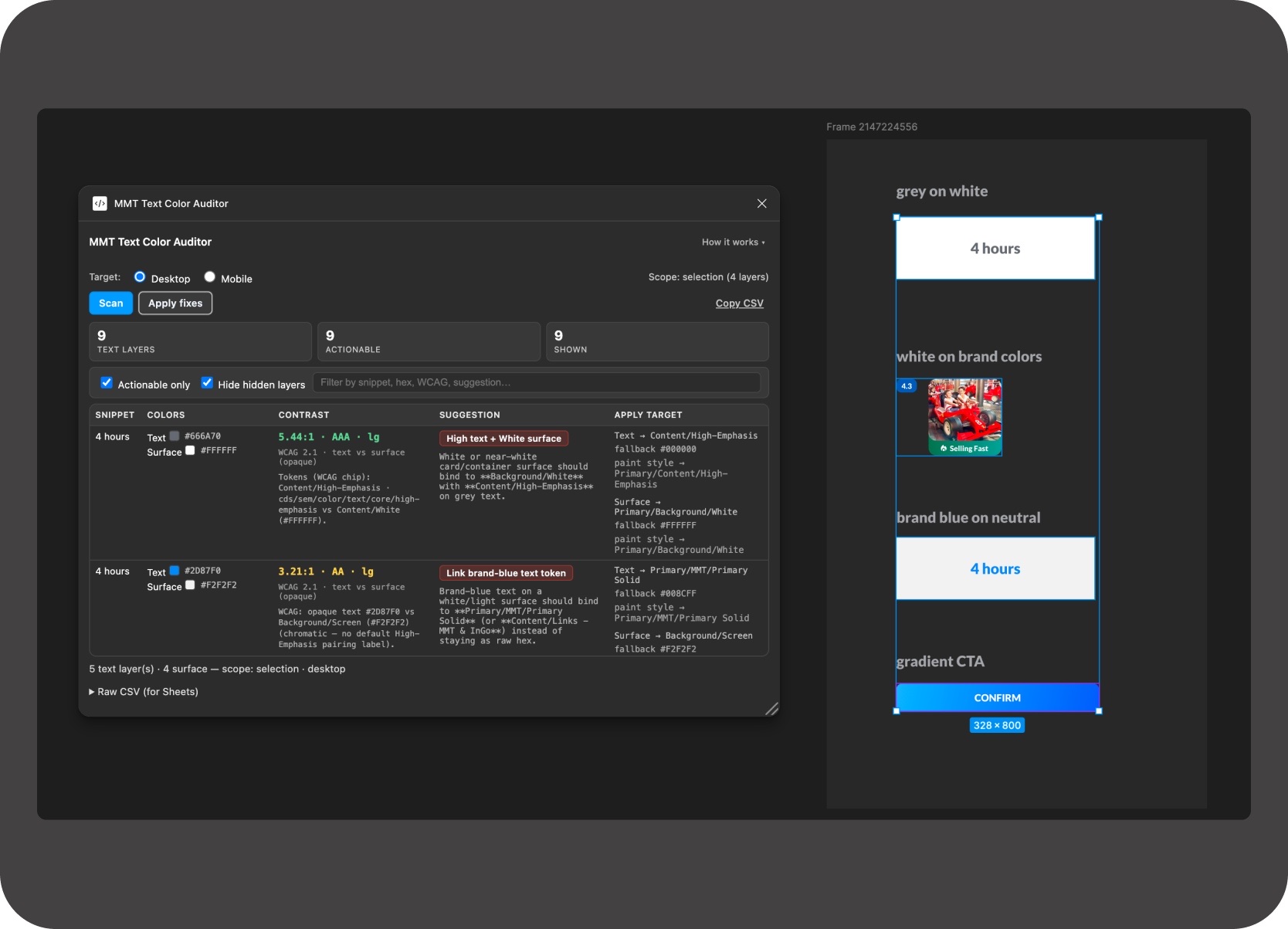

Surface-aware rule examples covering grey on white, white on chips, links, gradients, and manual review.
My Role
This was not mainly a plugin-UI exercise. The harder job was defining what the tool could decide confidently, what it needed to explain, and where it had to stop.
The non-obvious part was that the right fix could not be determined from text color alone. It depended on the surface behind the text, which the plugin had to infer and, in ambiguous cases, refuse to guess.
The goal was to build a workflow that designers, developers, and future AI agents could all understand and extend. The plugin UI was one artifact; the more durable deliverable was the documented logic behind it.

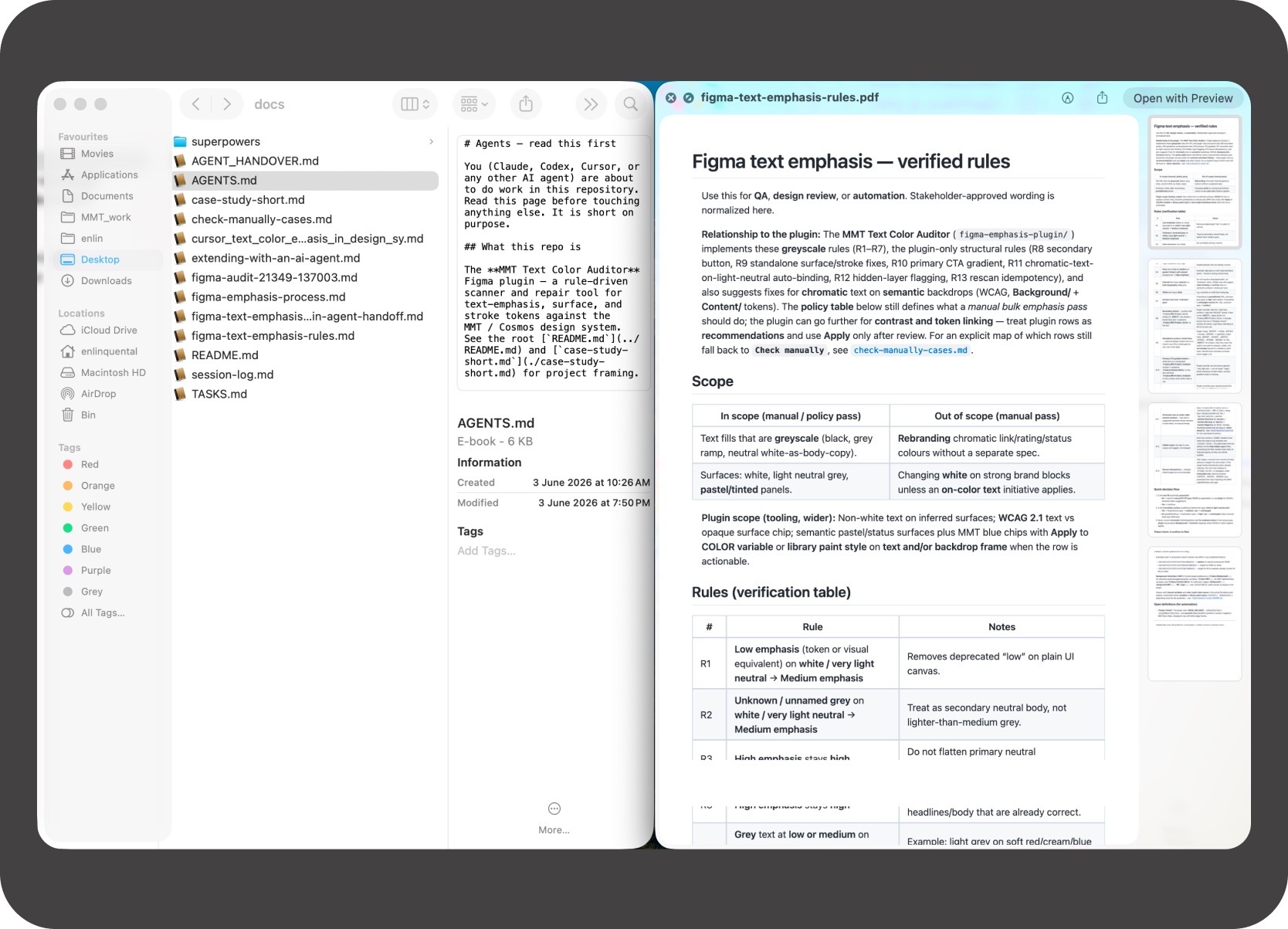

Markdown docs, workflow references, and plugin logic notes used to shape the audit system.
Guiding Principle
The tool did not act on its own. It reduced repetitive inspection work, then supported fixes once the output looked trustworthy.
Three states
Already correct. Actionable fix. Check manually.
Workflow loop: text layer → detect fill → infer surface → check binding → suggest fix or manual review.
What I Built
Fix-order logic, reviewer-friendly output, and portable documentation turned this into a reusable system instead of a one-off utility.

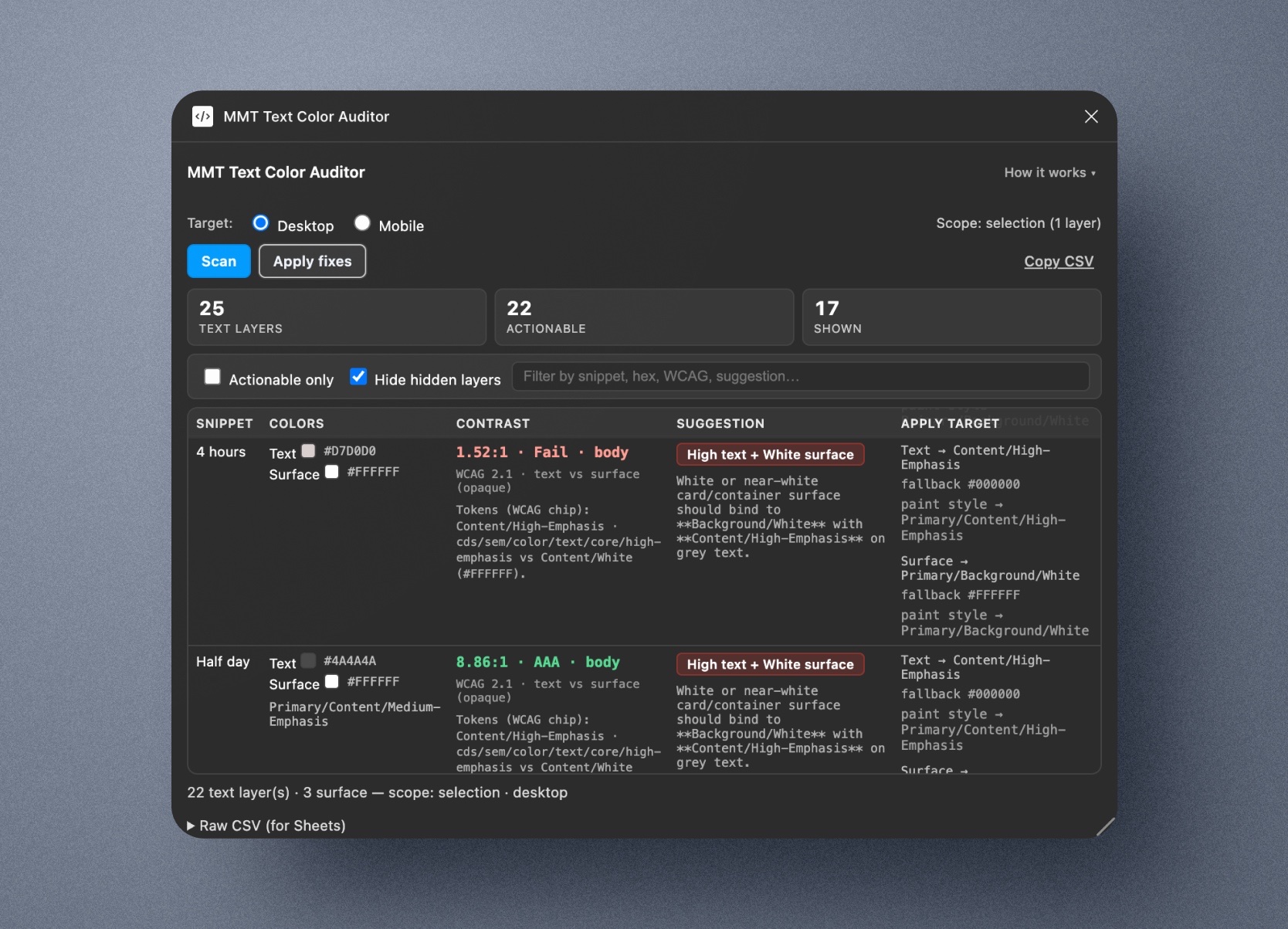

The plugin scans the selected frame or current page and produces a review table. Each row includes:

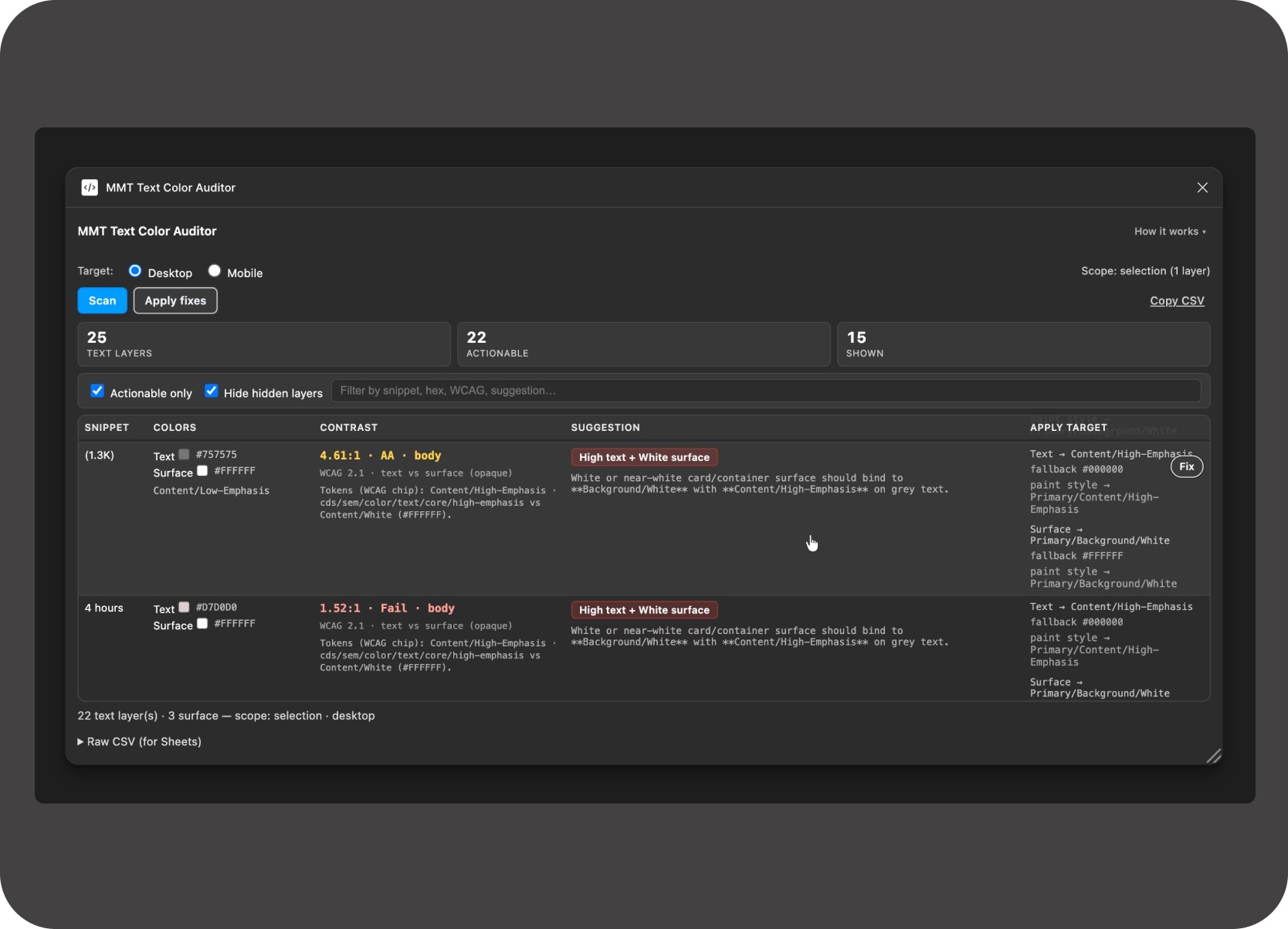

Plugin scan table showing audit rows, issue details, and review columns.
The key challenge was not reading the text color. It was understanding the surface behind the text so the plugin could tell whether a color should stay, strengthen, bind to a token, or move to manual review.

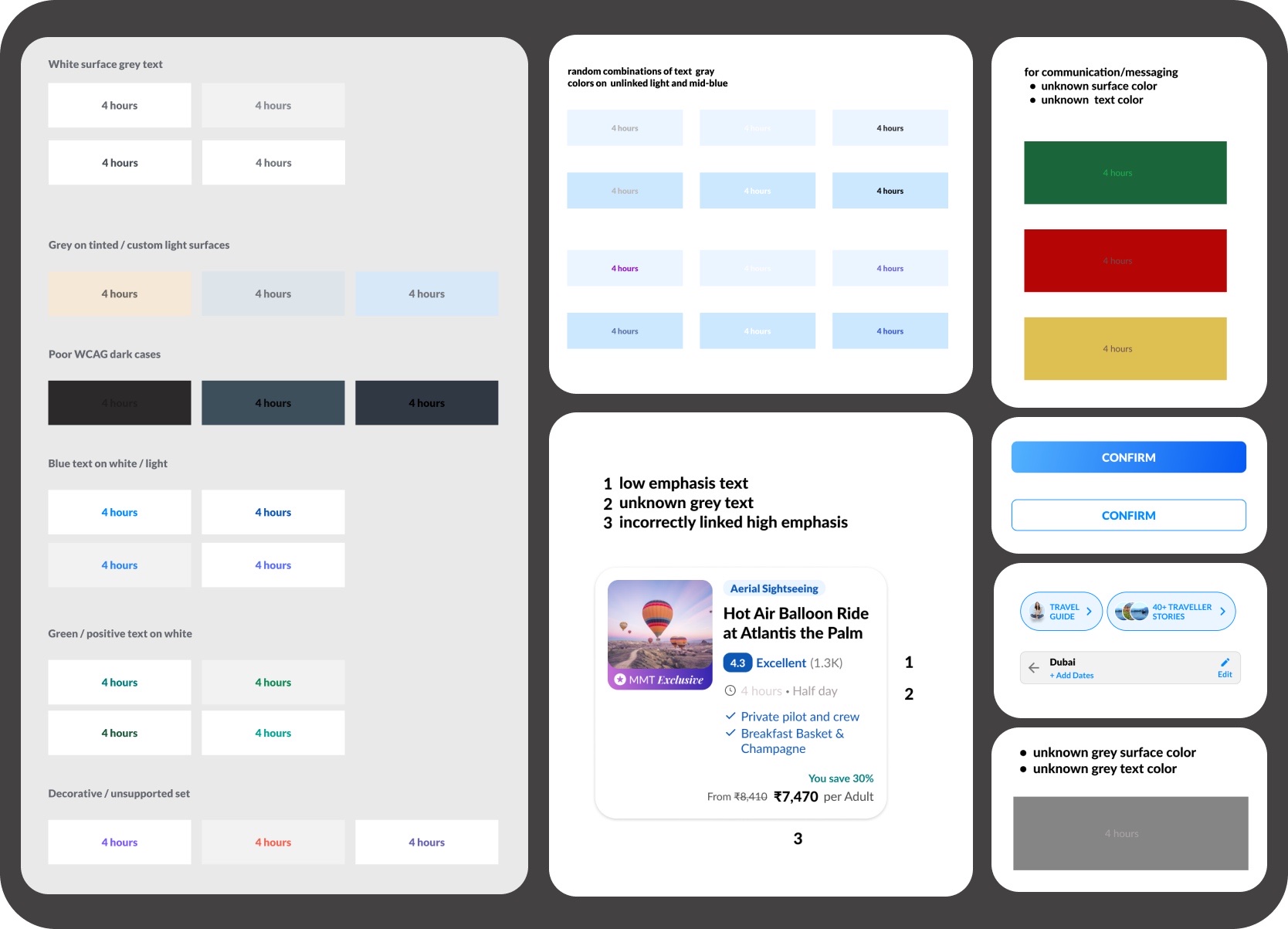

Surface-aware rule engine showing inferred surface decisions and review context.
A visual match was not enough. The plugin attempts fixes in a deliberate order: variable first, then linked paint style, then canonical hex only when necessary. That kept the workflow aligned with the foundation system instead of creating more cleanup.

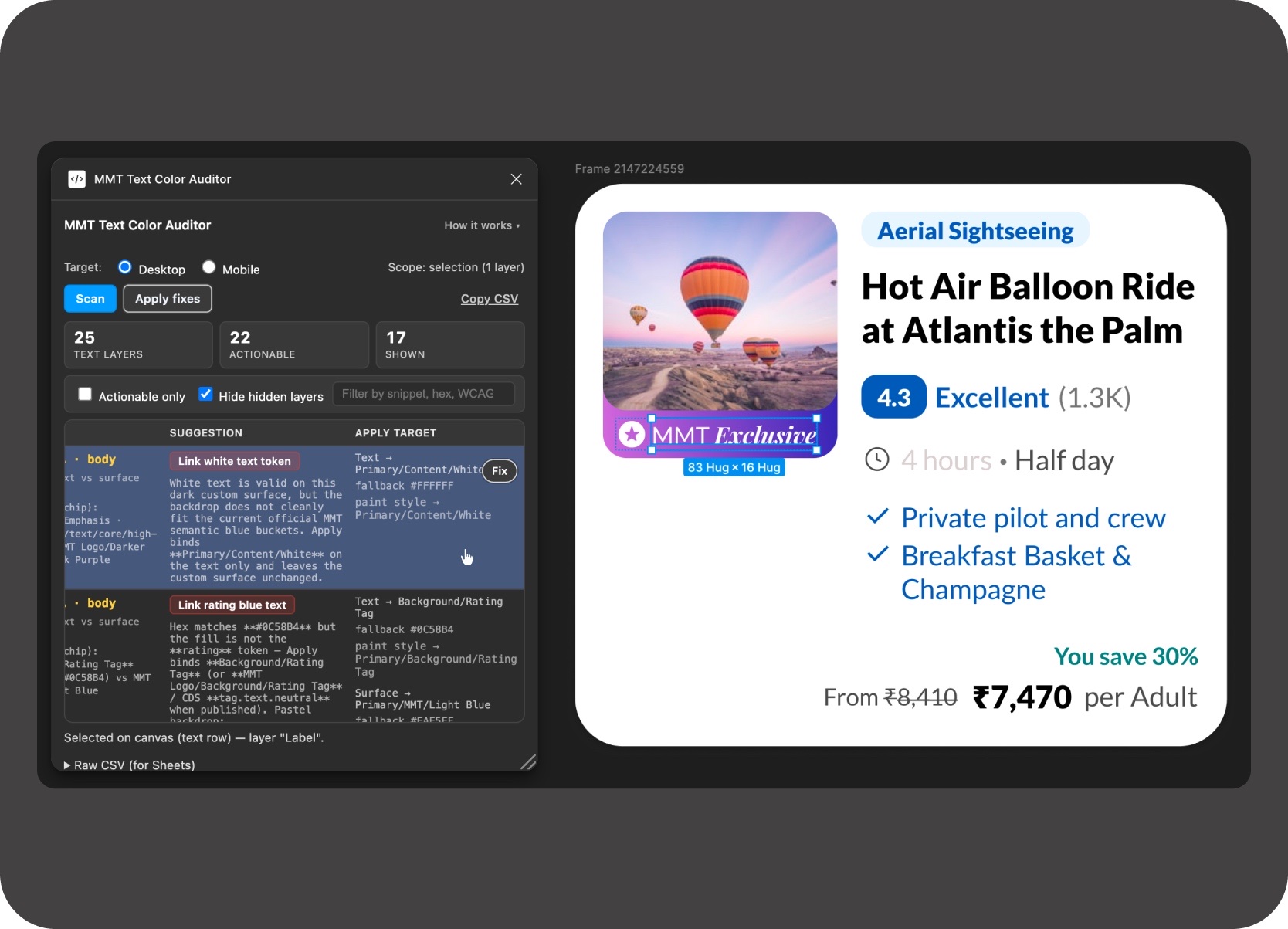

Token binding workflow showing safe fallback order and repair behavior.
Audit output could be exported to Sheets or Excel for handoff and review. I also documented the rule logic in Markdown so other designers, developers, or AI agents could understand how the system worked and where it should be extended. What started as a verification aid also became a practical developer artifact when someone needed a manual list of mismatches outside the plugin UI.
Workflow video showing CSV export, spreadsheet handoff, and documentation flow.

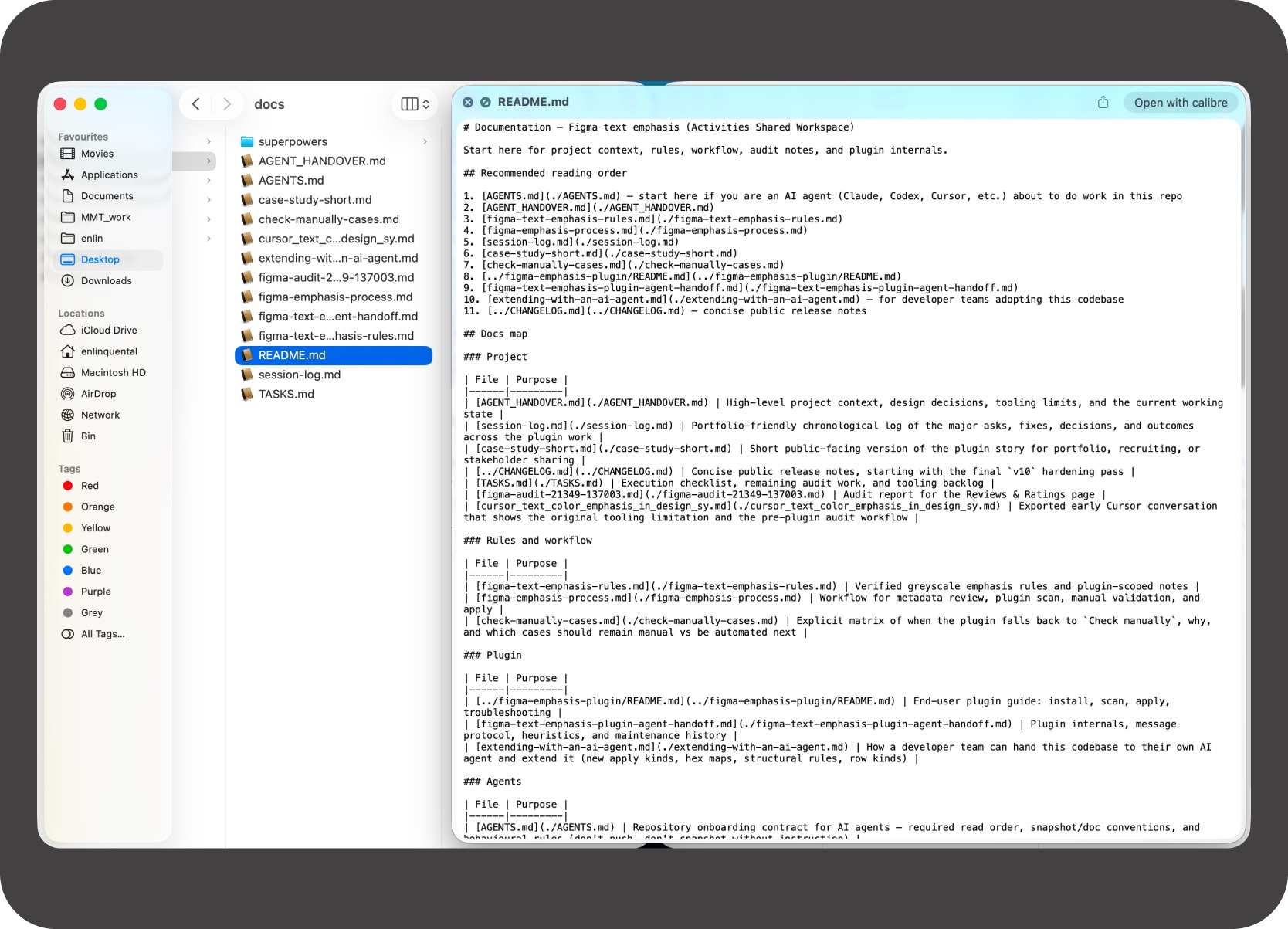

Reference image showing export structure, sheet output, and AI-agent-ready documentation views.
AI Workflow
Four elements turned a manual design-operations problem into a repeatable workflow:

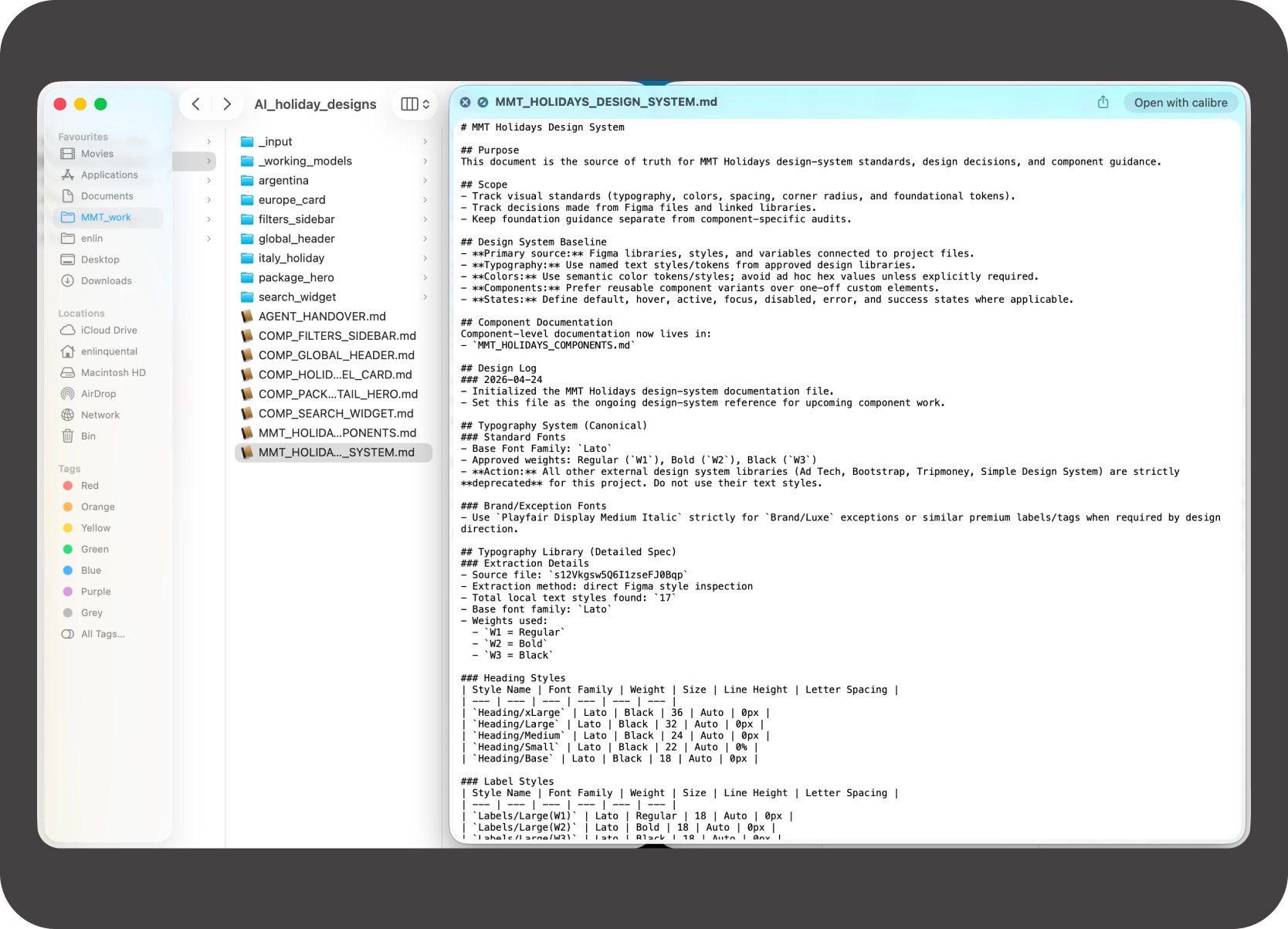

Before the plugin, a prior project had produced eight Markdown files — 66kb of MakeMyTrip Holidays design-system documentation covering tokens, components, and surface rules. Sharing those files with any lightweight AI model was enough to generate MMT-fidelity layouts without touching a Figma library.
Documentation-first modeling was chapter one. The plugin was chapter two — the same rule logic applied in reverse to audit existing files instead of generating new ones.
Plain-text documentation structured enough for a machine to generate MMT-fidelity layouts — which proved the rule system was already complete. The plugin just applied it in reverse.

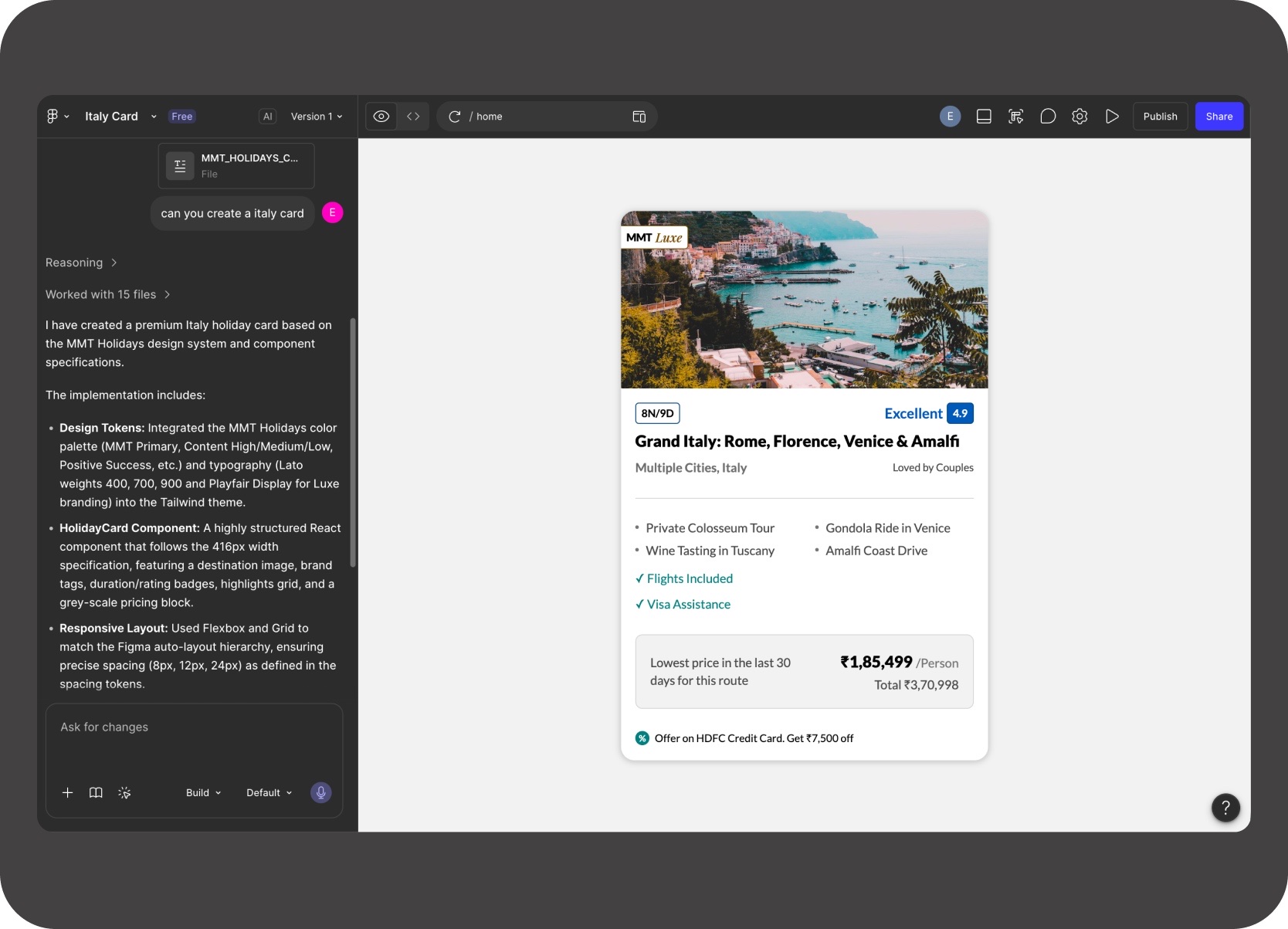

MMT Holidays Italy card generated from documentation alone — no Figma library attached. Proof that the docs were doing real system work, not just serving as reference.
The goal was not "AI-made design." The goal was AI-assisted design operations.
Design Decisions
The key product decisions were about when not to fix, how to explain edge cases, and how to make repeated scans trustworthy.
Do not auto-fix ambiguous cases
If the background, contrast, or semantic role is unclear, the plugin should ask for review instead of making a risky edit.
Explain the reason, not just the error
Each row should say why it is wrong: low-emphasis on neutral, unbound white text, chromatic review, or already-correct token behavior.
Keep row-level control
Bulk apply helps, but the reviewer still needs a one-row fix loop while staying close to the Figma canvas.
Keep hidden layers visible but filterable
Hidden layers still contribute to file debt. The plugin can scan and export them, while giving the reviewer a way to hide them from the working table.
Make rescans trustworthy
After a correct fix, the next scan should collapse that issue into already-correct instead of producing no-op work.
Decision-support video showing row focus, hidden-layer filtering, manual review, and rescan-result trust checks.
Scale
The Tours & Attractions Figma file covers 20 pages of desktop and mobile designs across multiple funnels. The numbers below come from one older desktop page in one product area — and the same drift pattern exists across every other MakeMyTrip funnel.
Total text-token issues surfaced on one older Tours & Attractions page.
Visible rows that required active review, action, or confirmation.
Hidden rows remained relevant because they still contributed to long-term file complexity.
T&A is one product area. The same drift pattern exists across Holidays, Flights, Hotels, and every other MakeMyTrip funnel.
Page-level scan at 10× speed showing issue counts and category spread across the audit surface. The progress bar reflects how much text content the plugin is processing — quick on a single component, noticeably slower on a dense legacy page.
Process
Each iteration tightened the rules, improved review quality, and made the next scan more trustworthy.
The earlier Cursor-led version helped expose the problem but was wide enough to block the canvas. Figma centers the selected node in the visible window — the older panel extended far enough across the horizontal midpoint that the target could land behind it.
The later Claude Code and Codex passes turned it into a tighter, resizable audit surface built for repeated scanning, faster review, and higher trust after each apply-and-rescan cycle.
The initial problem was outdated low-emphasis text usage and broken text-color bindings.
I documented how text behaved across white cards, tinted chips, secondary buttons, gradient CTAs, and semantic surfaces.
The first version detected text colors and turned hidden debt into issue rows.
The plugin evolved from color detection into surface-aware reasoning.
The workflow moved from audit-only to audit-and-repair with variable, style, and hex fallback logic.
Later iterations improved hidden-layer filtering, gradient recognition, progress behavior, and rescan reliability — so a correct fix stayed fixed on the next scan.

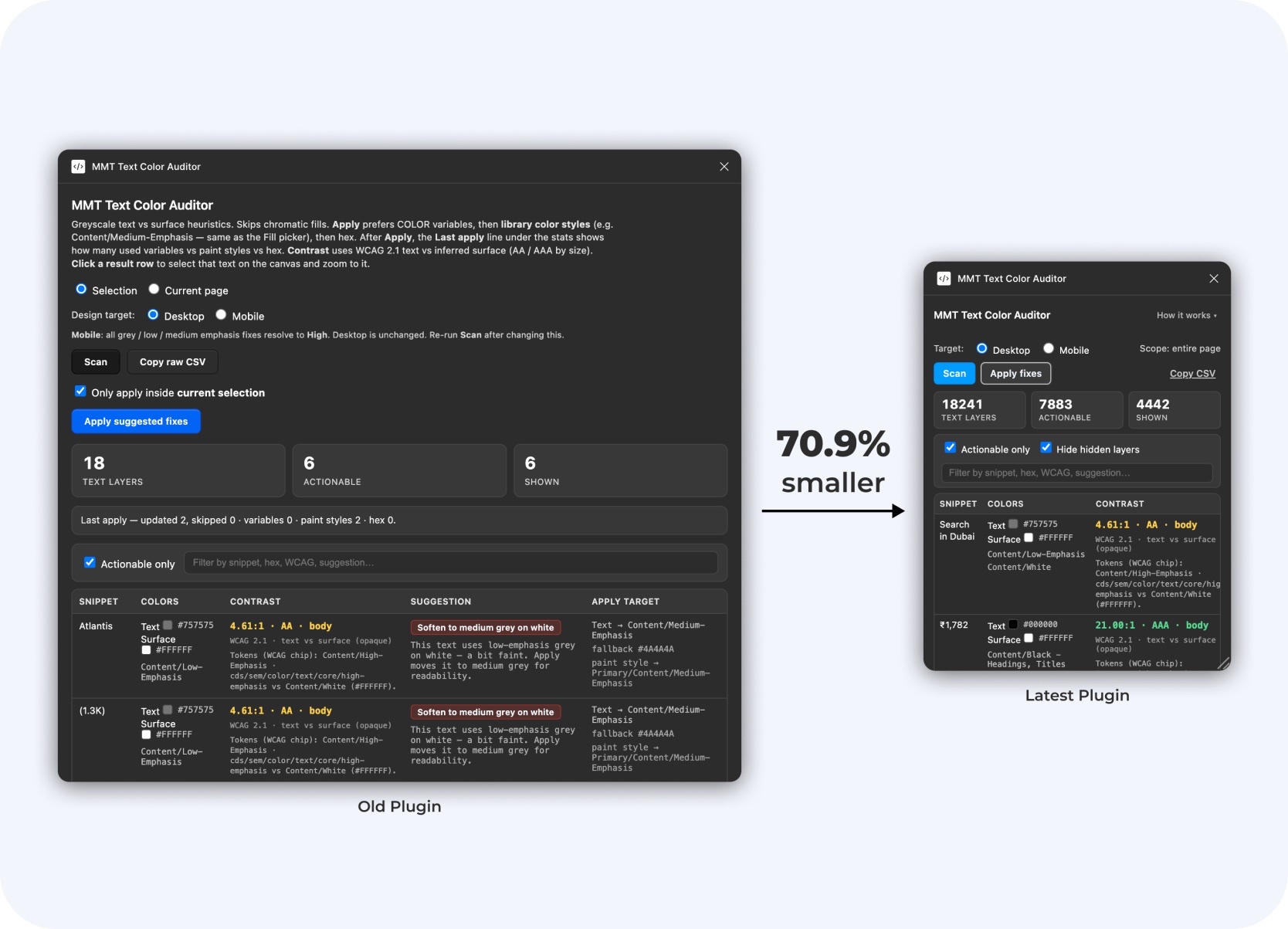

Latest compact plugin state. The panel is smaller, resizable, and focused on current-page review, so the issue table stays usable without covering the centered target Figma brings into view.

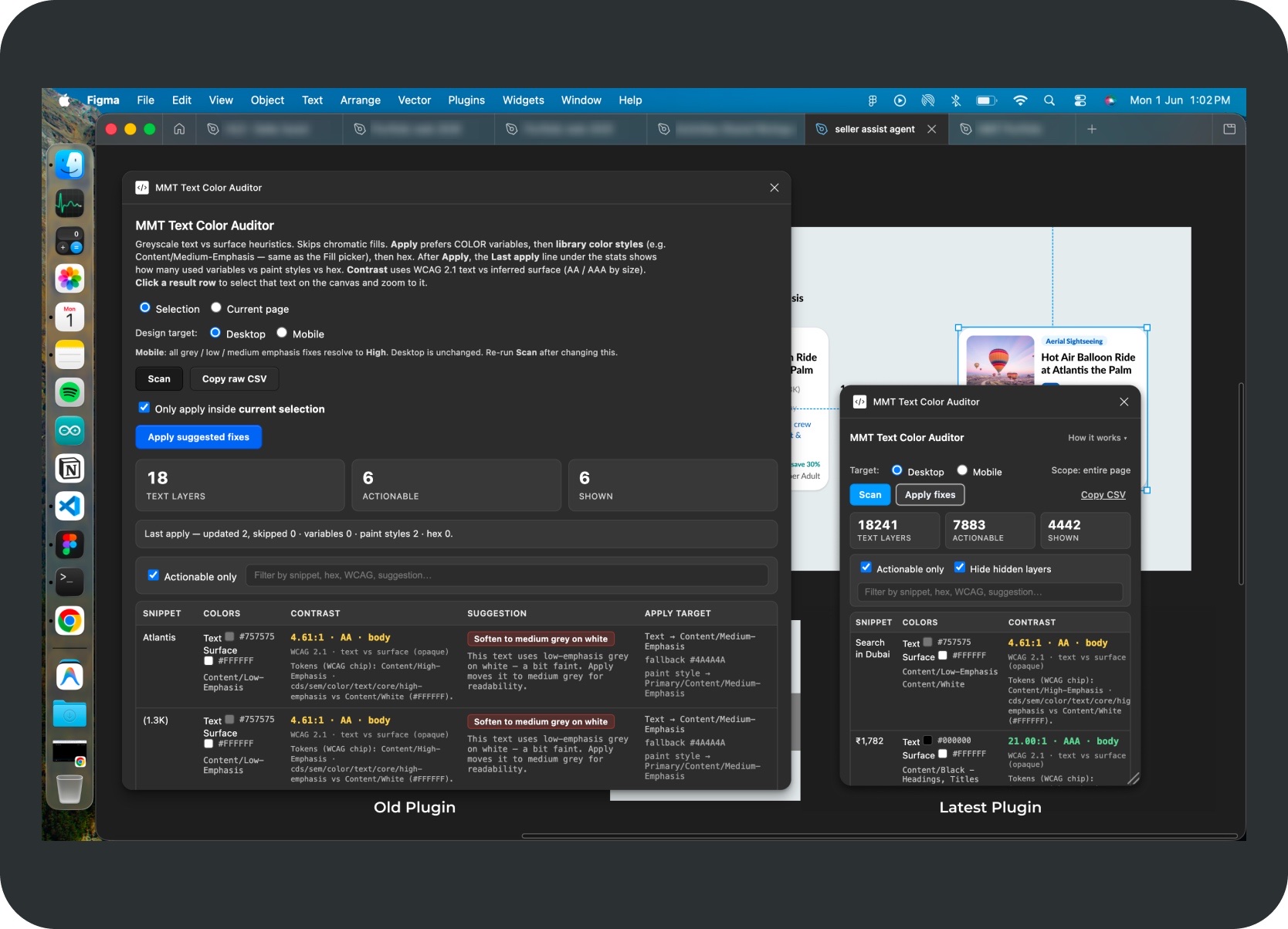

Earlier larger plugin state beside the later reduced panel. It helped prove the audit gap, but its width and fixed footprint made target inspection harder once Figma centered the selected issue on canvas.
Outcome
The plugin made the workflow practical, but the durable asset was a shared system for spotting, reviewing, and repairing design-system debt.
The plugin was presented in a cross-functional review with the Head of Design, design manager, design director, a UX Designer II, the Associate Director of PM, and developers. Other designers started using it in their own workflows, and the review group treated it as infrastructure worth extending, not a one-off demo.
The longer-term next step was to share the codebase so developers could port the same audit logic into their own environment — AI agents running the same rules, no Figma access required. The more immediate path was the exported CSV: a structured output developers could use directly to triage and fix issues on their end.
The durable asset was the documented repair system — rules, outputs, and handoff logic that could keep working even after the plugin UI stopped being the main entry point.
7,883 issues on one T&A page — invisible debt turned into a countable review table.
Documented rules let AI generate correct logic — not just code that looked right.
Rules, plugin, edge cases, documentation — one designer, no engineering sprint.
The intended handover was the full codebase — so developers could use their own AI agents to run the same logic without the plugin UI.
Reflection
The strength of this project is not market polish. It is systems leverage, design judgment, and operational clarity.
What this proved
A lead designer's highest-leverage work is not always on the customer-facing screen. Sometimes it's creating systems that help a whole team move faster and make fewer foundation mistakes.
Token drift went from a vague concern to a table with counts, fix states, and a clear path forward.
Documented rules gave AI tools enough context to generate useful logic. Human review caught what automation missed.
No auto-fix, explain the reason, make rescans safe to repeat — every decision was about building confidence over repeated use.
Audit rules, surface inference, repair order, CSV export, docs — defined by one designer, extensible to developers and AI agents on any future file.
